Allgemeine Spezifikationen

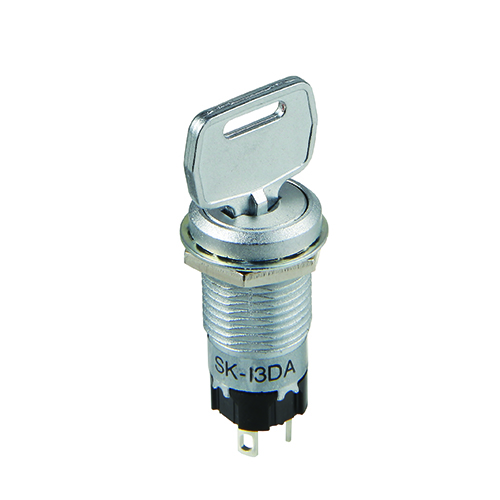

| Artikelnummer | SK13DAW01 |
|---|---|
| Description | Low & Medium Security Keylocks |
| Name | KEYLOCK SWITCHES |
| Serien | SK |
| Pole | SPDT |
| Schaltungen | On-Off-On |
| Nennstrom | 3A AC |
| Nennwert | 3 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Panel Mount |
| Stichwörter | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Contact Timing | Non-Shorting (BBM) |
| No Positions | 3 |
| Angle Throw | 45 |
| Actuator Type | Flat Key |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Termination Style | Solder Lug |
| Standards & Approvals | CSA,UL |
