Allgemeine Spezifikationen
| Artikelnummer | MB2521S4W03 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MBNF25S4W03 New PN Available to Order : 2024/01/15 |

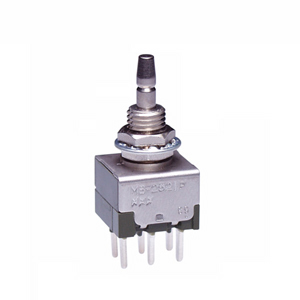

| Name | PUSHBUTTON SWITCHES |
| Serien | MB2500 |
| Pole | DPDT |
| Schaltungen | On-(On) |
| Nennstrom | 3A (AC) |
| Nennwert | 6 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Panel Mount |
| Stichwörter | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Actuator Type | Round Cap(Optional Accessory) |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Straight PC Terminals |
| Standards & Approvals | CSA,UL |
