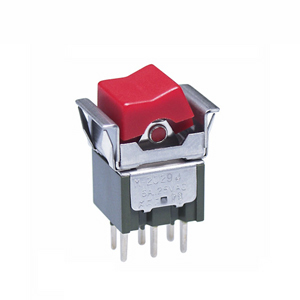

M2029TJW03

Allgemeine Spezifikationen

Artikelnummer	M2029TJW03
Description	Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN29TJW03 New PN Available to Order : 2024/01/15
Name	ROCKER SWITCHES
Serien	M
Pole	DPDT
Schaltungen	On-Off-(On)
Nennstrom	6A (AC), 4A (DC)
Nennwert	6
Beleuchtung	Non-Illuminated
Befestigungsart	Panel Mount, Snap-In
Contact Finish	Silver
Rating (AC)	125V
Rating (DC)	30V
Actuator Type	Rocker Cap(Optional Accessory)
Panel Cutout Shape	No Marking
Panel Cutout Dimensions	15.9×12.5
Termination Style	Straight PC Terminals
Standards & Approvals	CSA,UL

Schalterzubehör

• Bezel/Black/EM,MB24,MB25:AT207A
• Bezel/White/EM,MB24,MB25:AT207B
• Bezel/Red/EM,MB24,MB25:AT207C
• Bezel/Yellow/EM,MB24,MB25:AT207E
• Bezel/Green/EM,MB24,MB25:AT207F
• Bezel/Blue/EM,MB24,MB25:AT207G
• Bezel/Glay/EM,MB24,MB25:AT207H
• Bezel for 2 AT617 LEDs/Black:AT212A
• Bezel for 2 AT618 LEDs/Black:AT213A
• :AT4136A
• :AT4136B
• :AT4136C
• :AT4136E
• :AT4136F
• :AT4136G
• :AT4136H
• 11.43mm Wide Rocker/Black:AT4150A
• 11.43mm Wide Rocker/White:AT4150B
• 11.43mm Wide Rocker/Red:AT4150C
• 11.43mm Wide Rocker/Yellow:AT4150E
• 11.43mm Wide Rocker/Green:AT4150F
• 11.43mm Wide Rocker/Blue:AT4150G
• 11.43mm Wide Rocker/Gray:AT4150H
• 11.43mm Wide Paddle/Black:AT4151A
• 11.43mm Wide Paddle/White:AT4151B
• 11.43mm Wide Paddle/Red:AT4151C
• 11.43mm Wide Paddle/Yellow:AT4151E
• 11.43mm Wide Paddle/Green:AT4151F
• 11.43mm Wide Paddle/Blue:AT4151G
• 11.43mm Wide Paddle/Gray:AT4151H
• 11.5mm False Illuminated Rocker:AT466
