Alternat Product
Allgemeine Spezifikationen
| Artikelnummer | M2012S3S4W01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MN12S3S4W01 New PN Available to Order : 2023/7/3 |

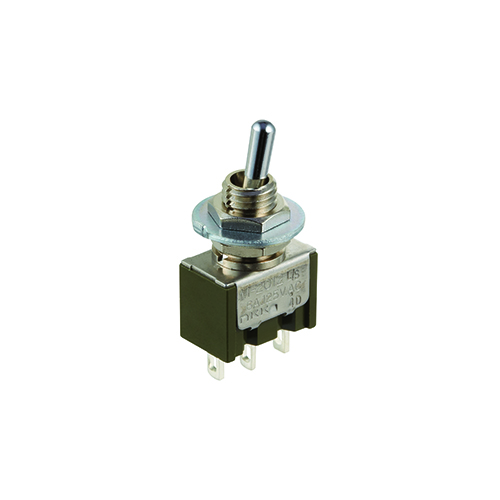

| Name | TOGGLE SWITCHES |
| Serien | M |
| Pole | SPDT |
| Schaltungen | On-On |
| Nennstrom | 6A (AC), 4A (DC) |
| Nennwert | 6 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 6.5mm Bat |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | CSA,UL |
