Allgemeine Spezifikationen
| Artikelnummer | M2018SS2G13 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN18SS2G13 New PN Available to Order : 2024/01/15 |

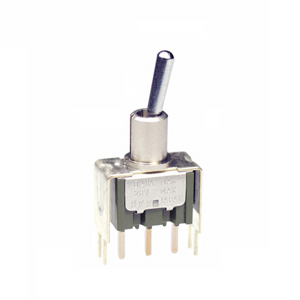

| Name | TOGGLE SWITCHES |
| Serien | M |
| Pole | SPDT |
| Schaltungen | (On)-Off-(On) |
| Nennstrom | 0.4VA (AC/DC) |
| Nennwert | 0.4 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Through Hole |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 10.5mm Bat |
| Termination Style | Straight PC Terminals with Bracket |
| Standards & Approvals | UL |
