Allgemeine Spezifikationen

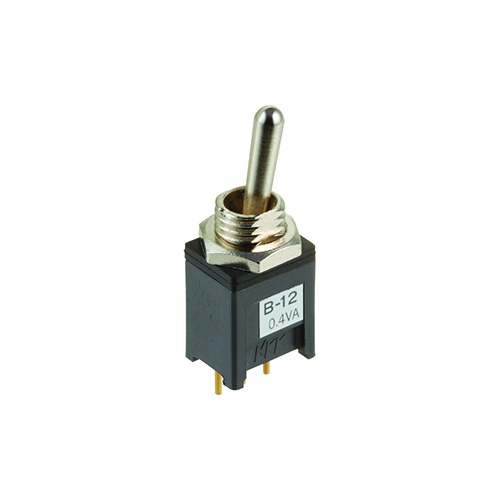

| Artikelnummer | B12A1P |
|---|---|
| Description | Process Sealed Subminiature Antistatic Toggle Switches |
| Name | TOGGLE SWITCHES |
| Serien | B |
| Pole | SPDT |
| Schaltungen | On-On |
| Nennstrom | 0.4VA (AC/DC) |
| Nennwert | 0.4 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Through Hole |
| Stichwörter | Epoxy Sealed Terminals |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 8.0mm bat with Panel Seal Threaded Bushing |
| Termination Style | Straight PC Terminals |
